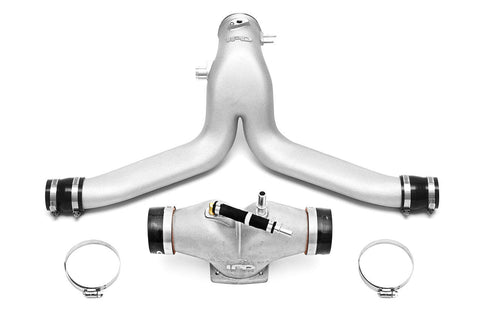

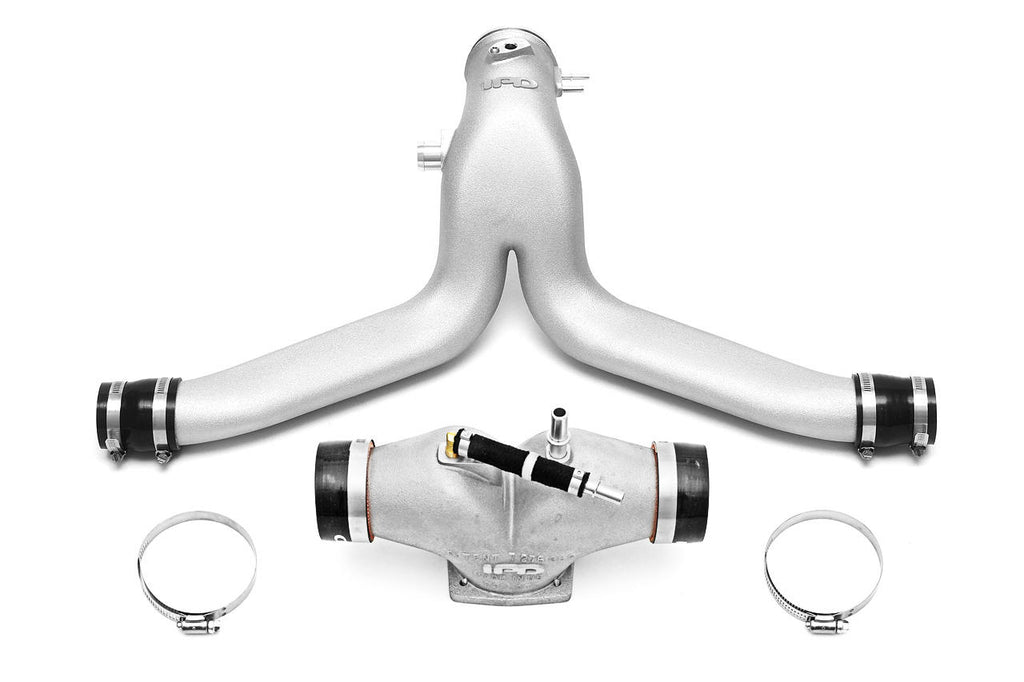

Porsche 997 Turbo IPD Intake Plenum & Y-Pipe (2006-2009)

The perfect compliment to Fabspeed's 997 Turbo exhaust upgrades, this high performance intake plenum from Innovative Pro Design provides substantial power gains by increasing the efficiency and flow of the engine's air intake system.
FEATURES:

The incredible 997 Porsche Turbo is the most revolutionary and capable Porsche Turbo to ever come out of Germany. The already explosive power can be further increased with the new 997 Turbo IPD Intake Plenums.

The patented IPD Plenum design works exceptionally well with all forced induction applications and the 997 Turbo is no exception. Power and torque increases provided by the IPD plenum are impressive and stay over and above all factory power curves from launch to redline. Maximum power increases take place in the midrange where it's most needed and most critical.

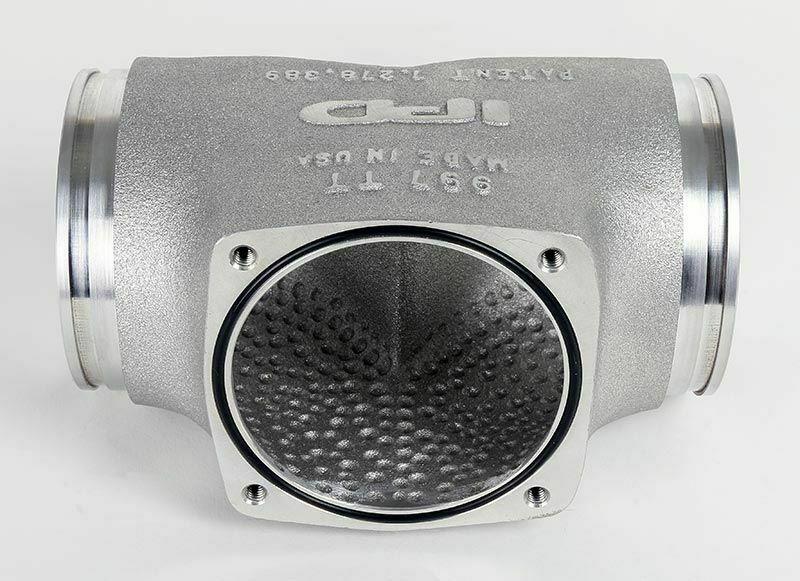

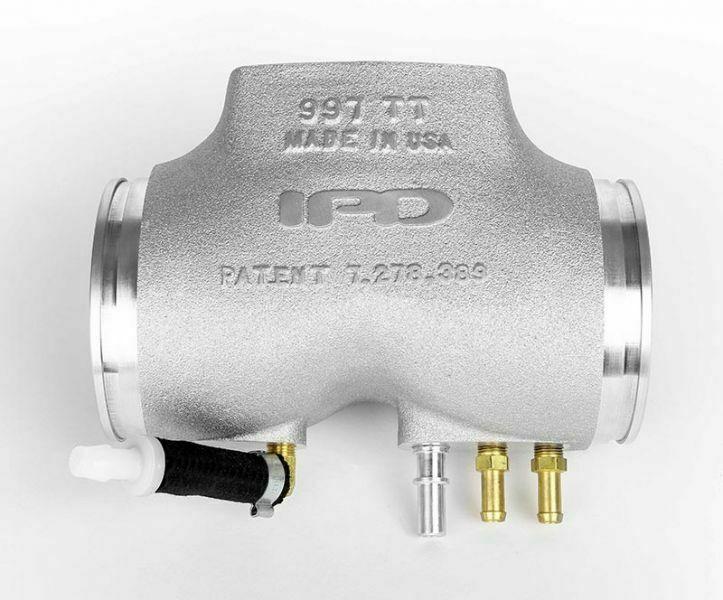

IPD Plenum:

Turbo customers looking to increase engine power without pushing the motorsport envelope to redline would best benefit from the 74mm IPD Turbo Plenum.

This version of the 997 Turbo plenum utilizes the factory 74mm throttle body and delivers impressive performance gains for both stock and slightly modified Turbos with exhaust and software. Beyond these performance mods we recommend upgrading to the larger 82mm IPD Turbo Plenum.

The 74mm IPD Turbo Plenum is also designed to perform with the higher flowing IPD “Y” Pipe.

Power obsessed Turbo customers looking to push the motorsport envelope a little harder would best benefit from the larger 82mm “Competition” IPD plenum fitted with a factory 997 GT3 82mm Porsche throttle body (additional purchase required).

The larger 82mm intake opening allows for even greater air flow to help optimize the more extreme mods such as larger turbos, intercoolers, Y Pipes and more aggressive software.

This larger version Plenum is also designed to perform with the higher flowing IPD “Y” Pipe.

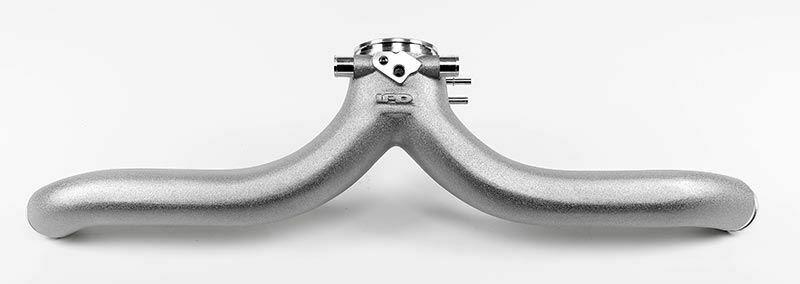

IPD Y Pipe:

The revolutionary 997 Turbo IPD “Y” Pipe was built for the more demanding Turbo performance customer. This is not a cast reproduction of the factory Y pipe but a complete re-design from scratch, developed to deliver even greater air flow for both stock AND highly modified Turbos.

The factory Y pipe becomes restrictive when adding substantial power gains. The IPD “Y” Pipe has larger inlets and an optimized diversion area allowing for even greater power gains. This superior and more efficient design flows 126 more cfm than the factory Y pipe delivering the additional power needed to raise the performance bar on any Turbo.

Bigger isn't always better, and the IPD “Y” Pipe is designed to deliver optimum flow without being too large causing a loss in boost response.  These “Y” Pipes can also be special ordered in custom powder coated colors and ceramic coatings or polished to improve the aesthetic appeal of your Turbo engine.

The IPD 997 Turbo Y Pipe is designed to be a direct replacement of the factory OEM Y Pipe. There are no modifications or fabrication required for installing the IPD Y Pipe. This is an easy and straight forward R & R (remove and reinstall) bolt on upgrade.

1. Superior and more efficient design over the factory intake.
   The IPD Plenums are products of efficiency that simply improve intake air flow and increase air velocity. The “Y” shape design and dimpled interior surface make air flow more laminar (less turbulent) dramatically improving power and torque across the entire RPM band. Smoother more optimized intake air flow will improve the performance of any engines. The more efficiently an engine breaths, the more efficiently it produces power.
2. Deliver impressive power gains regardless of modifications.
   The superior design of the IPD Plenums optimize flow while increasing air velocity. Period! This applies to any Porsche engine, producing any level of power. The patented “Y” design delivers impressive performance gains for both bone-stock and highly modified Porsches. The more efficient design of the IPD Plenum will always outperform the factory air distributor. The factory intake will become even more detrimental to performance as your increase the power and torque outputs. The bigger the power, the better the IPD Plenum performs.


3. Produce substantial gains for both turbo and NA applications.
   The Plenums always deliver considerable gains on both turbo AND naturally aspirated engines. It's a fact that the Turbo Plenums do produce more power than the NA Plenums. But the Turbo engines also produce more power. The fact is that the percentage gains of the different Plenum applications are actually almost identical, around 8-10% depending on the specific model.


4. Do not require an ECU flash and will not cause a CEL.
   IPD Plenums should never cause a CEL or require an ECU Flash. If a Plenum is installed correctly there should be no fault codes or running issues, only solid performance gains across the entire RPM band. The only issue that could possibly arise is the need for a new MAF sensor if you already have a degraded sensor or perform a TB adaptation. There is absolutely no need to re-flash your ECU after installing an IPD Plenum, Period! Although any reputable Porsche tuner could further optimize an ECU program to achieve even greater performance gains with the Plenum installed.


5. Aluminum Plenums run cooler and don't suffer from heat soak.
   The Aluminum Plenums do NOT experience heat soak under driving or racing conditions. It is true that aluminum has a higher thermal conductivity than plastic. In fact, aluminum is 650 times more thermally conductive than plastic and has a specific heat capacity that is 550 times higher than plastic. This means the aluminum Plenum actually spreads the energy it's exposed to 656 times faster than the plastic and can store more than 550 times the amount of energy per unit mass. Bottom line, aluminum can absorb more heat than plastic, but it also takes considerably more energy to heat up and it's losing that energy way faster than the aluminum allowing the IPD Plenum to remain cooler from outside ambient air under driving conditions, ultimately improving engine performance over plastic. Plus, why would Porsche utilize aluminum intakes on GT3's, GT2's, Cup Cars and Cup R's?


NOTE: If you are upgrading your throttle body along with the IPD Plenum, you may need to visit a dealership to have them perform a manual throttle body adaptation process. Some customers have reported that installing the throttle body and plenum while the battery is disconnected results in the car performing an adaptation check once the battery is reconnected, alleviating the need to visit a dealership. However, Fabspeed recommends having the adaptation performed at a certified dealership for optimal results. If you need a recommendation for a dealership in your area, please contact us.
